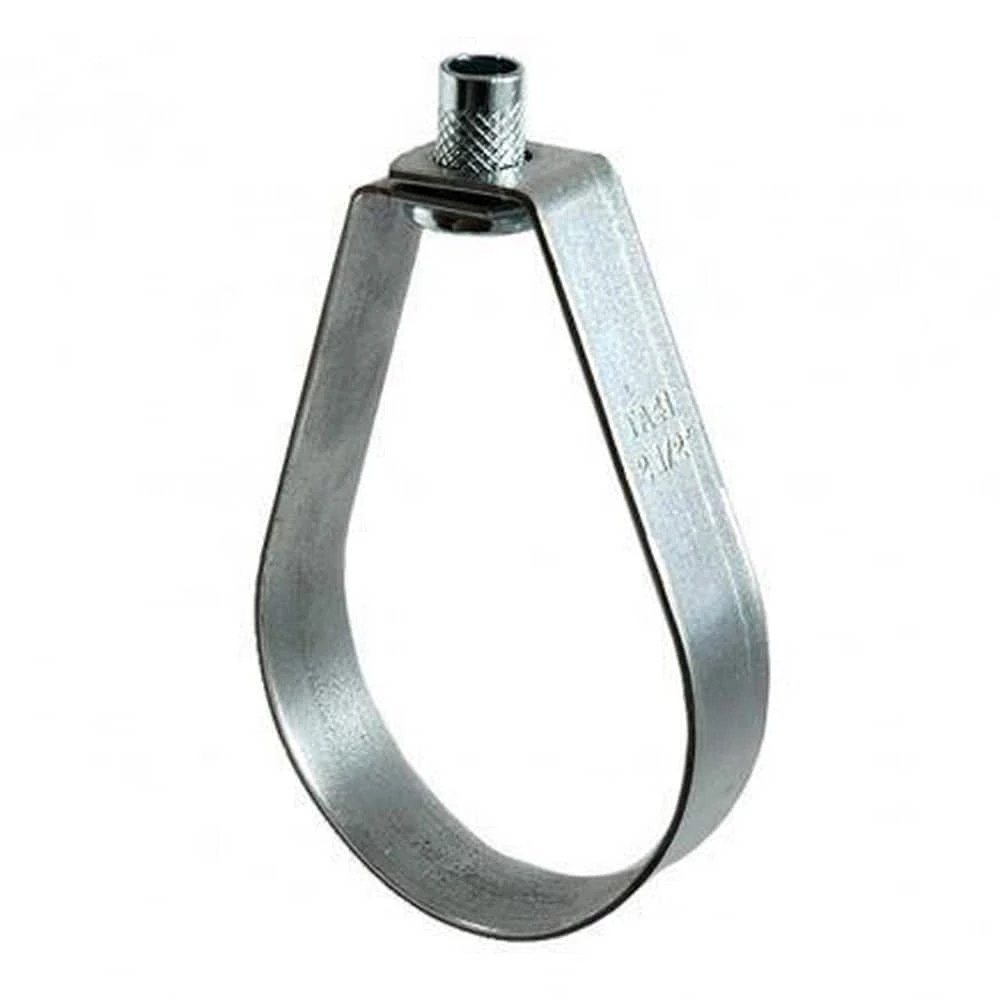

Name: Wholesale 🎉 PHD Manufacturing Fig 141 6 in. Pre-Galvanized Carbon Steel Swivel Ring Hanger ⭐
SKU: 1427713
Availability: InStock

Sale!

Original price was: $279.73.Current price is: $94.99.

SKU: 1427713 Categories: Hangers, Pipe & Conduit Hangers Tag: Carbon Steel

Fast and Secure Payments
Quick responses, top-notch service.
Buy with Peace of Mind
Product guarantee 100% satisfaction

Designed for the suspension of non-insulated stationary pipe lines

The knurled insert nut that allows a vertical adjustment after installation, is tapped to NFPA reduced rod size standards

Captured knurled insert nut present on pipe sizes 1⁄2” (15mm) to 2″ (50mm)

The capture is permanent in the bottom portion of the band, allowing the hanger to be opened during installation if desired, but preventing the knurled insert nut from falling completely out

Fig. 141F has a layer of felt which separates the pipe from the hanger to reduce vibration and sound

ANSI Specifications	ANSI SP-58 Type 10, ANSI SP-69
Application	CPVC Pipe, Non-Insulated Pipes, Stationary Piping, Steel Pipe
Coating	Pre-Galvanized
Collection	Fig 141
FM Approved	Yes
Fits Pipe Size	6 in
Height	9-13/16 in
MSS Specifications	MSS SP-58 Type 10, MSS SP-69
Material	Carbon Steel
Product Type	Swivel Ring Hanger
Rod Size In	1/2 in
UL Listed	Yes
Work Load Limit	1000
